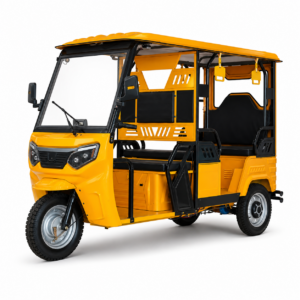

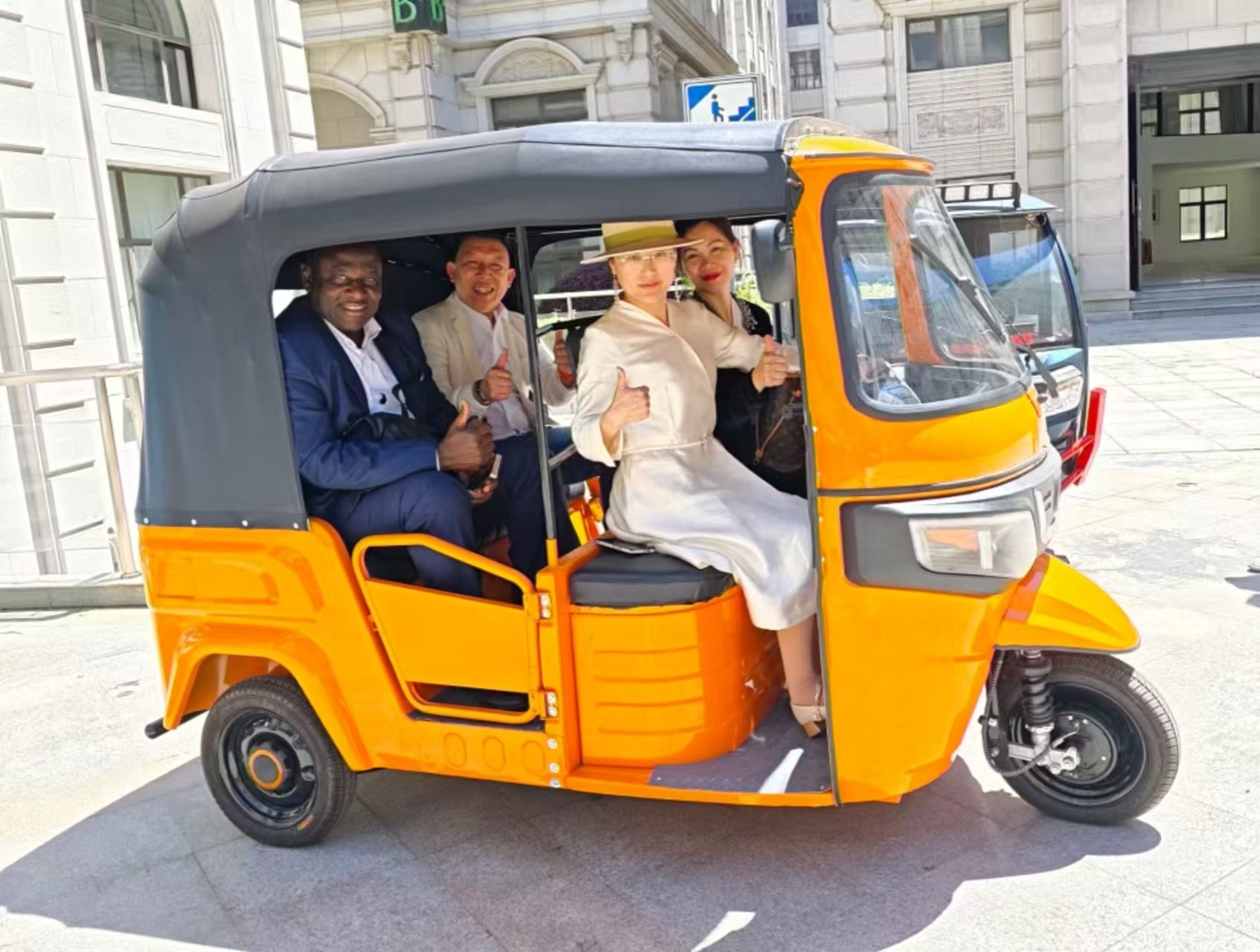

Product Overview A compact 3+1 electric passenger tuk tuk with a 4000W motor, hydraulic drum brakes, and independent suspension for urban, resort, and community transport. Key Features 3+1 seating for four people Hydraulic drum braking system Independent front and rear suspension Electronic gear shifting Lithium-ion battery configuration Technical Specifications Model Single-Row Deluxe 3+1 Rated Voltage 60–72V Motor Power 4000W Maximum Speed ≤66 km/h Payload Capacity ≥400 kg Dimensions (L × W × H) 2650 × 1350 × 1800 mm Curb Weight 380 kg (without battery) Passenger Capacity 4 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lithium-ion Motor Type Direct current motor Gear System Electronic shifting Brakes Hydraulic drum brake Suspension Independent front suspension; independent rear suspension with ball-cage half shaft Wheelbase / Track Base 2000 / 1170 mm Range Depends on battery configuration Product Details

Product Overview A practical 3+1 electric passenger tricycle powered by a 2000W PMSM motor, designed for efficient daily passenger transport and short-distance mobility. Key Features 3+1 seating for four people Mechanical drum brakes Integrated front shock absorption Electronic gear shifting 36T controller Technical Specifications Model Single-Row Standard 3+1 Rated Voltage 60–72V Motor Power 2000W Maximum Speed ≤50 km/h Payload Capacity ≥400 kg Dimensions (L × W × H) 2650 × 1350 × 1800 mm Curb Weight 330 kg (without battery) Passenger Capacity 4 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lithium-ion Motor Type PMSM Gear System Electronic shifting Controller 36T Front Suspension 43 mm outer tube with external spring and integrated shock absorption Rear Axle Integrated rear axle with truss arm Brakes Mechanical drum brakes Wheelbase 2000 mm Range Depends on battery configuration Product Details

Product Overview A high-capacity 6+1 electric passenger tuk tuk with a foldable double-row layout, 4000W motor, and hydraulic drum brakes for group transport. Key Features 6+1 double-row passenger layout Foldable seating configuration Hydraulic drum braking system Independent suspension Electronic gear shifting Technical Specifications Model Double-Row Foldable Deluxe 6+1 Rated Voltage 60–72V Motor Power 4000W Maximum Speed ≤66 km/h Payload Capacity ≥400 kg Dimensions (L × W × H) 2950 × 1350 × 1800 mm Curb Weight 390 kg (without battery) Passenger Capacity 7 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lithium-ion Motor Type Direct current motor Gear System Electronic shifting Brakes Hydraulic drum brake Suspension Independent front suspension; independent rear suspension with ball-cage half shaft Wheelbase 2200 mm Range Depends on battery configuration Product Details

Product Overview A spacious face-to-face double-row electric tuk tuk with a 2000W PMSM motor, built for reliable community, resort, and shuttle transport. Key Features Face-to-face double-row seating Mechanical drum brakes Integrated shock absorption Electronic gear shifting 36T controller Technical Specifications Model Double-Row Standard Face-to-Face 6+1 Rated Voltage 60–72V Motor Power 2000W Maximum Speed ≤45 km/h Payload Capacity ≥400 kg Dimensions (L × W × H) 3160 × 1280 × 1850 mm Curb Weight 340 kg (without battery) Passenger Capacity 6 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lithium-ion Motor Type PMSM Gear System Electronic shifting Controller 36T Front Suspension 43 mm outer tube with external spring and integrated shock absorption Rear Axle Integrated rear axle with truss arm Brakes Mechanical drum brakes Wheelbase / Track 2300 mm Range Depends on battery configuration Product Details

Product Overview A deluxe forward-facing double-row electric passenger tricycle with a 4000W motor and 600 kg-class payload capability for demanding passenger routes. Key Features Forward-facing double-row seating Hydraulic drum braking system Independent suspension Electronic gear shifting Lithium-ion battery configuration Technical Specifications Model Forward-Facing Double-Row Deluxe 6+1 Rated Voltage 60–72V Motor Power 4000W Maximum Speed ≤50 km/h Payload Capacity ≥600 kg Dimensions (L × W × H) 3400 × 1300 × 1850 mm Curb Weight 440 kg (without battery) Passenger Capacity 6 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lithium-ion Motor Type Direct current motor Gear System Electronic shifting Brakes Hydraulic drum brake Suspension Independent front suspension; independent rear suspension Wheelbase 2600 mm Range Depends on battery configuration Product Details

Product Overview A practical forward-facing double-row electric tuk tuk using a 2000W PMSM drive and hydraulic drum brakes for stable daily passenger service. Key Features Forward-facing double-row seating Hydraulic drum braking system Integrated shock absorption Electronic gear shifting 36T controller Technical Specifications Model Forward-Facing Double-Row Standard 6+1 Rated Voltage 48–60V Motor Power 2000W Maximum Speed ≤45 km/h Payload Capacity ≥600 kg Dimensions (L × W × H) 3400 × 1300 × 1850 mm Curb Weight 390 kg (without battery) Passenger Capacity 6 persons Charging Time 5–8 hours Gradeability 15–20° Battery Type Lithium-ion Motor Type PMSM Gear System Electronic shifting Controller 36T Front Suspension 43 mm outer tube with external spring and integrated shock absorption Rear Axle Integrated rear axle with truss arm Brakes Hydraulic drum brake Wheelbase 2600 mm Range Depends on battery configuration Product Details
